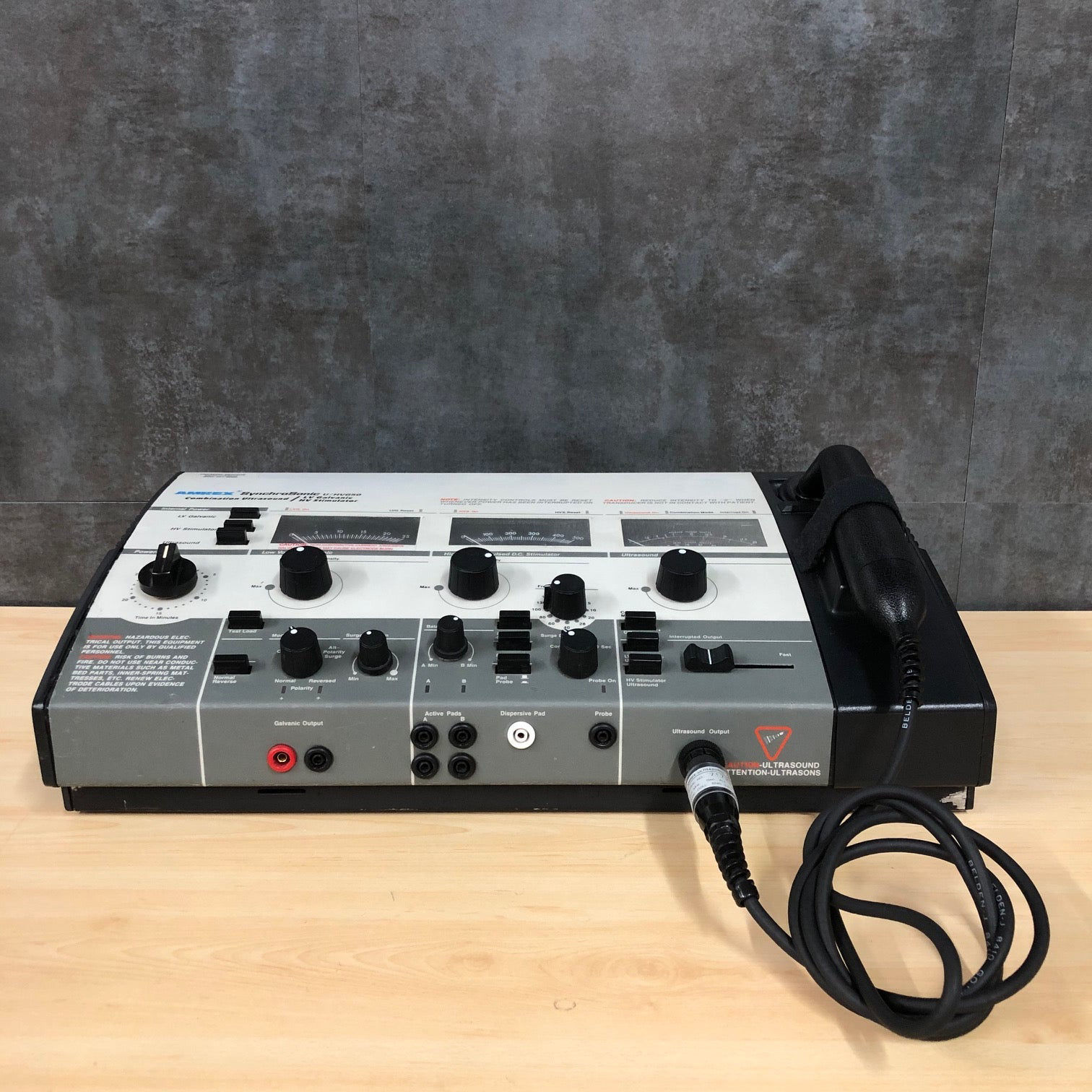

The Amrex Synchrosonic Single Channel Combination Unit US-50 is a versatile device that offers a powerful combination of therapeutic ultrasound and low volt AC muscle stimulation. This advanced combination therapy enables practitioners to capitalize on the benefits of ultrasound's thermal effects and stimulation's analgesic effects for enhanced treatment capabilities.
The US/50 boasts a lightweight standard transducer, providing ease of use during therapeutic ultrasound sessions. For added convenience, there is an option to switch to the QuickConnect transducer system. Moreover, practitioners can opt for the small transducer with the QuickConnect Cable, ensuring flexibility in treatment applications.
Safety is paramount, and the US/50 comes equipped with a cable fault alarm system and a transducer protection switch, providing an additional layer of protection. The adjustable interrupted output mode allows practitioners to tailor treatment based on individual needs, with an output power range of 0 to 20 watts, ensuring precise and effective therapy.
Time management is made simple with the 30-minute timer, allowing practitioners to stay on track during treatments. Additionally, the device includes a patient treatment stop switch, empowering patients to control the stimulator output for their reassurance and comfort.
The US/50 offers both single-channel and dual-channel stimulator options. The dual-channel stimulator (US/54) supports four pad application, while the single-channel (US/50) supports two pad application. Each channel includes dual intensity controls, and the US/54 also provides a Tetanize mode and adjustable pulsation and ramped surge modes.
With the Reciprocal mode ramped feature on the US/54, practitioners can enjoy added flexibility in treatment options. The intensity reset circuit ensures that each session starts at a standard setting, enhancing treatment consistency.
The device's combination therapy capability enables practitioners to use ultrasound and stimulation independently or in conjunction, providing a comprehensive approach to patient care.
Here are the technical specifications:
Ultrasound Features:
- Frequency: 1.0 MHz ± 5%.
- Waveform: Amplitude modulated at 120 Hz ± 1%.
- Pulse Duration: 8 ms ± 1%.
- Output Mode: Adjustable interrupted and non-interrupted.
- Output Power: 0 to 20 W total ± 20% / 0 to 5 W/cm2 ± 20%.
- Treatment Timer: Adjustable 0 to 30 minutes.
- Crystal Material: Barium-titanate.
- Applicator Beam Type: Collimating.
- ERA (Effective Radiating Area): 4 cm2 ± 20%.
- BNR (Beam Nonuniformity Ratio): 5.5:1 maximum.
Stimulator Features:
- Waveform: Asymmetrical alternating current (no load).
- Output Voltage: 110 V peak into 1 k Ω load / 28 V peak into 100 Ω load.
- Output Intensity: 56 µC maximum charge per pulse into 100 Ω load.
- Pulse Width: 200 µs at 50% V maximum.
- Frequency Range: 1 to 80 pulses per second.
- Surge and Reciprocal Duration: Adjustable 3.75 s on/off to 0.375 s on/off.
Overall Dimensions: 14.5" W x 11.0" D x 7.0" H. Weight (with Transducer): 14 lbs. Shipping Weight: 22 lbs.
The Amrex Synchrosonic Single Channel Combination Unit US-50 is designed to meet the demands of modern practice, offering a comprehensive and efficient solution for therapists and patients alike.
